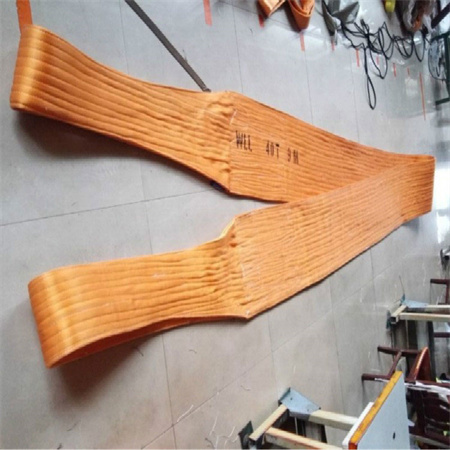

Flat lifting strap, flat sling, flat lifting rope, flat lifting strap

Lifute Hoisting Co., Ltd. 18066002268 produces lifting belts, lifting nets, nylon ropes, soft ladders, steel wire rope rigging, paper ropes, safety belts, safety nets, lifting chains, steel coil hoists, crossbeam hoists, flat lifting belts, circular lifting belts, electric traction ropes, high-altitude safety belts, and anti fall safety nets

Hits： ℃

Release time：2025-09-19 16:24

Order

Flat lifting belt parameters

Product Model	Product color	rated load(kg)	Approximate thickness(mm)		Approximate width(mm)			L(m)		Ring eye length(mm)	weight（kg/m)
Product Model	Product color	rated load(kg)	4:1	5、6、7、8:1	4、5、6:1	7:1	8:1	minimum length	maximum length	Ring eye length(mm)	4:1	5:1	6:1	7:1	8:1
W01-01	紫色	1000	7.0	7.5	25	30	50	1.1	100	300	0.15	0.19	0.20	0.22	0.32
W01-02	绿色	2000	7.0	7.5	50	60	60	1.2	100	300	0.29	0.36	0.41	0.45	0.53
W01-03	黄色	3000	7.0	7.5	75	90	90	1.3	100	350	0.48	0.56	0.60	0.71	0.83
W01-04	灰色	4000	7.0	7.5	100	120	120	1.4	100	500	0.56	0.61	0.75	1.02	1.12
W01-05	红色	5000	7.0	7.5	125	150	150	2.0	100	550	0.84	0.89	1.02	1.21	1.4
W01-06	棕色	6000	7.0	7.5	150	180	180	2.0	100	600	0.94	0.98	1.26	1.42	1.62
W01-08	蓝色	8000	7.0	7.5	200	240	240	2.0	100	700	1.20	1.36	1.69	1.89	2.42
W01-10	橙色	10000	7.0	7.5	250	300	300	3.0	100	800	1.62	1.68	2.07	2.34	2.84
W01-12	橙色	12000	7.0	7.5	300	300	300	3.0	100	900	1.90	1.95	2.37	2.98	3.27
